Menşe yeri: | Çin |
Marka adı: | HongCe |
Sertifika: | Calibration certificate(cost additional) |
Model numarası: | HC9903 |
Min sipariş miktarı: | 1 Set |
---|---|
Fiyat: | Negotiable |
Ambalaj bilgileri: | Kontrplak |
Teslim süresi: | 20 gün |
Ödeme koşulları: | L/C, T/T |
Yetenek temini: | 30 ayda ayarla |
Ağırlıkları: | 0.3,0.4, 0.7, 0.9, 1.4kg | Test yüksekliği: | 260, 280, 300, 320mm |
---|---|---|---|
Diameter of ferrule hole: | 6.5, 9.5, 13, 14.5mm | test kere: | 0~9999 |
Diameter of gyration: | 75mm | Test hızı: | 10±2 RPM |
Vurgulamak: | iec test cihazı,laboratuvar test cihazları |

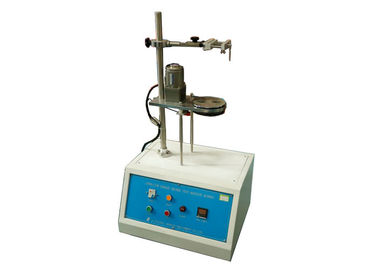

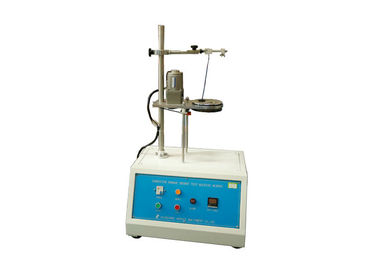

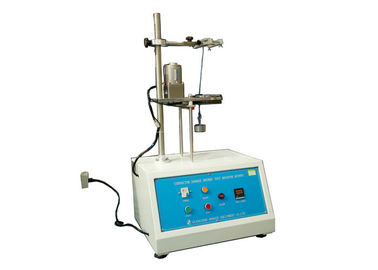

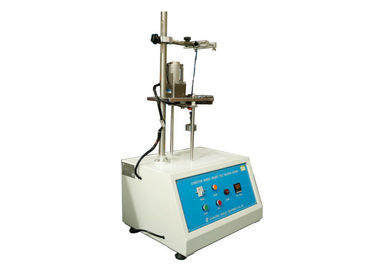

10 ± 2 RPM Test Hızı IEC60884 Şekil 11 İletkenlerin Hasarını Kontrol Etmek İçin Test Cihazı Tek Çalışma İstasyonu
Standart:
IEC 60884-1 'Ev ve benzeri amaçlar için fişler ve prizler - Bölüm 1: Genel gereksinimler' maddesi 12.2.2, 12.3.10 ve şekil 11
Uygulama:
It is use to check whether the terminals with screw and screwless terminals can bears the mechanism force under normal operation. Vidalı ve vidasız terminalli terminallerin normal çalışma sırasında mekanizma kuvvetini taşıyabildiğini kontrol etmek için kullanılır. Mainly use to judge whether the design and structure of screw clamping terminals meet the requirement of clamp the conductors without excessive damage. Vida kelepçesi terminallerinin tasarımının ve yapısının, iletkenleri aşırı hasar vermeden kelepçeleme gerekliliğini karşılayıp karşılamadığını değerlendirmek için kullanın.
Örnek test:
Vidalı terminaller ve vidasız terminaller
Parametreler:
model | HC9903 |
Test oranı | 10 ± 2 RPM |
Dönme çapı | 75mm |
Test süreleri | 0 ~ 9999 |
Ağırlıklar | 0.3,0.4, 0.7, 0.9, 1.4kg |
Test yüksekliği | 260, 280, 300, 320mm |
Yüksük deliğinin çapı | 6,5, 9,5, 13, 14,5 mm |
Standartlar | benEC60884-1, IEC60669-1 |
Normal Test
1. Terazi ayarı: Terazi pozisyonunun sabit somunun kilidini açın, fikstürü test için gerekli yüksekliğe ayarlayın ve sabitleyin.
2. Center adjustment: use the wire hammer to find the center of the turntable. 2. Merkez ayarı: döner tablanın merkezini bulmak için tel çekiç kullanın. Here we need to correspond to the shape of the sample, so that the leading-out terminal of the sample is alignment. Burada numunenin şekline karşılık gelmemiz gerekir, böylece numunenin ön terminali hizalanır.
3. Örnek kurulum.
3.1. 3.1. The connection terminals are connected to the corresponding wires, and clamp and fix the fixtures after installing. Bağlantı terminalleri ilgili kablolara bağlanır ve montajdan sonra armatürleri kelepçeleyin ve sabitleyin.
3.2. 3.2. The wire are through to the corresponding bushing and install the corresponding counterweight. Tel karşılık gelen burca kadar ve karşılık gelen karşı ağırlığı takın.
3.3. 3.3. Comparison table of the weight, height and bushing as below: Aşağıdaki gibi ağırlık, yükseklik ve burç karşılaştırma tablosu:
İletkenin nominal kesit alanı (mm²) | Geçit izolatörü Delik çapı (mm) | Yükseklik (mm) | İletken kütlesi (kg) |
0.5 | 6.5 | 260 | 0.3 |
0.75 | 6.5 | 260 | 0.4 |
1.0 | 6.5 | 260 | 0.4 |
1.5 | 6.5 | 260 | 0.4 |
2.5 | 9.5 | 280 | 0.7 |
4,0 | 9.5 | 280 | 0.9 |
6 | 9.5 | 280 | 1.4 |
10.0 | 9.5 | 280 | 2.0 |
16.0 | 13.0 | 300 | 2.9 |
|
4. Normal test adımları:
4.1. 4.1. Preset【Test Time】according to standard requirements, press<to select the preset time, then pres▲Upward or▼Downward to select the required value, and then press[SET] to confirm, time display format is 99hours 59minutes59s.(Every time the test time is changed, the reset button should be pressed to eliminate the test time which set before.) Önceden ayarlanmış Time Test Süresi standard standart gereksinimlere göre, önceden ayarlanan zamanı seçmek için <tuşuna basın, ardından gerekli değeri seçmek için ▲ Yukarı veya ▼ Aşağı tuşuna basın ve ardından onaylamak için [SET] tuşuna basın, saat görüntüleme formatı 99 saat 59 dakika 59 saniyedir. (Her seferinde test süresi değiştirilirse, daha önce ayarlanan test süresini ortadan kaldırmak için sıfırlama düğmesine basılmalıdır.)
4.2. 4.2. Press【Start】button, the device starts to run, the turntable rotate at a rate of 10r/min., after reaching to the【Test Time】,the test automatic stop and with sound prompt. 【Başlat】 düğmesine basın, cihaz çalışmaya başlar, döner tabla 10r / dak hızında döner, 【Test Süresi】, test otomatik durdurması ve sesli komut ile ulaştıktan sonra.
4.3. 4.3. Press the Yellow reset button to remove the voice prompt. Sesli istemi kaldırmak için Sarı sıfırlama düğmesine basın. After the test is completed, the switch of the circuit breaker should be pulled down and cut off the power supply. Test tamamlandıktan sonra, devre kesicinin anahtarı aşağı çekilmeli ve güç kaynağını kesmelidir.
4.4. 4.4. Conclusion: During the test, the conductor shall neither slip out of the clamping unit nor break near the clamping unit, nor shall the conductor be damaged in such a way as to render it unfit for further use. Sonuç: Test sırasında iletken ne sıkıştırma ünitesinden dışarı kaymaz ne de sıkıştırma ünitesinin yakınından kırılmaz ve iletken daha fazla kullanım için uygun olmayacak şekilde hasar görmez.
