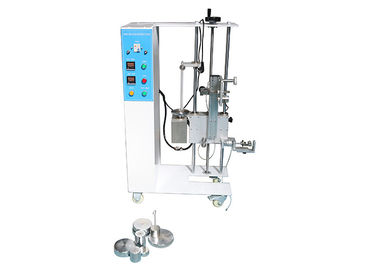

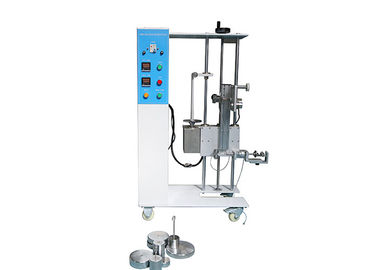

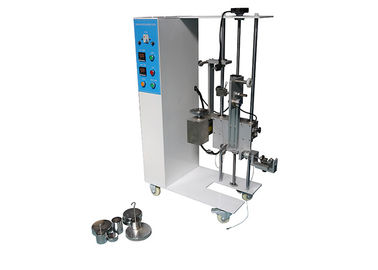

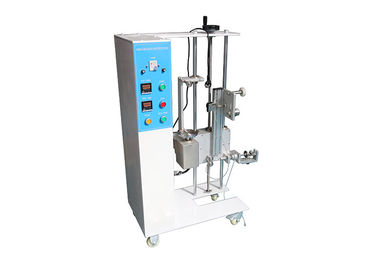

Kordon Ankraj Gerilme ve Büküm Test Cihazları HJ0609
Ürün Bilgisi:
The test appliance conforms to IEC60335-1:25.15. Test cihazı IEC60335-1: 25.15'e uygundur. It is used to test the power cord tension and torque at the terminal two trials of the appliances which are with a power cord, and intended flexible cord permanently connected to the fixed wiring and other household electrical appliances, medical equipment, checking whether the clamping device is secure. Güç kablosu gerginliğini ve torkunu, güç kablosu olan cihazların iki denemesinde terminalde test etmek ve sabit kablolara ve diğer elektrikli ev aletlerine, tıbbi ekipmanlara kalıcı olarak bağlı amaçlanan esnek kabloları test etmek için kullanılır, kelepçeleme cihazının güvenlidir.
Appliances provided with a supply cord, and appliances intended to be permanently connected to fixed wiring by a flexible cord, shall have a cord anchorage. Bir besleme kablosu ile sağlanan cihazlarda ve esnek bir kablo ile sabit kablolamaya kalıcı olarak bağlanması amaçlanan cihazlarda bir kablo ankrajı bulunacaktır. The cord anchorage shall relieve conductors from strain, including twisting, at the terminals and protect the insulation of the conductors from abrasion. Kordon ankrajı, iletkenleri terminallerde bükülme de dahil olmak üzere gerilmeden kurtarmalı ve iletkenlerin yalıtımını aşınmaya karşı koruyacaktır.
Aşağıdaki tabloda gösterilen çekme kuvvetine maruz kalırken, kordon ankrajından veya başka bir uygun noktadan yaklaşık 20 mm mesafede kablo üzerinde bir işaret yapılır.
The cord is then pulled, without jerking, for 1 s in the most unfavourable direction with the force specified. Daha sonra kordon, sarsılmadan, belirtilen kuvvetle en olumsuz yönde 1 sn çekilir. The test is carried out 25 times. Test 25 kez yapılır.
The cord, unless on an automatic cord reel, is then subjected to a torque that is applied as close as possible to the appliance. Kablo, otomatik bir kablo makarası üzerinde olmadığı sürece, cihaza mümkün olduğunca yakın bir şekilde uygulanan bir torka maruz bırakılır. The torque is specified in following table and is applied for 1 min. Tork aşağıdaki tabloda belirtilmiştir ve 1 dakika süreyle uygulanır.
During the tests, the cord shall not be damaged and shall show no appreciable strain at the terminals. Deneyler sırasında kablo hasar görmemeli ve terminallerde kayda değer gerilme göstermemelidir. The pull force is reapplied and the cord shall not be longitudinally displaced by more than 2 mm. Çekme kuvveti yeniden uygulanır ve kablo uzunlamasına 2 mm'den fazla yer değiştirmemelidir.
Teknik parametreler:
Güç kaynağı | AC230V, 50HZ |
Çekme kuvveti ağırlıkları | 20N * 2, 30N * 2 (30N, 60N, 80N, 100N çekme kuvveti elde edilebilir) |
Tork ağırlıkları | 5N * 1, 12.5N * 1, 17.5N * 1 (tork kuvveti 0.1Nm, 0.25Nm, 0.35Nm elde edilebilir) |
Test süreleri | 0 ~ 9999 (seçilebilir), varsayılan olarak 25 kez |
Çekme kuvveti frekansı | 1 kez / s |
Tork kolu | 20mm |
Tork süresi | 0.01S-99 saat 99 dk |
Kelepçe | Hem çekme kuvveti hem de tork için kombine kelepçe, rulmanla eşleşen, tork testi işlenirken sürtünmeyi azaltabilir |
Tablo - Çekme kuvveti ve tork.
Cihazın kütlesi (kg) |
Çekme kuvveti (N) |
Tork (Nm) |
≤1 |
30 |
0.1 |
> 1 ve ≤4 |
60 |
0.25 |
> 4 |
100 |
0.35 |
Test prosedürü:
1. Press the “START” button, the pull force testing begins, after it reaches to the preset test times, the torque weight will be released automatically, and then the torque testing begins. 1. “BAŞLAT” düğmesine basın, çekme kuvveti testi başlar, önceden ayarlanan test sürelerine ulaştıktan sonra tork ağırlığı otomatik olarak serbest bırakılır ve ardından tork testi başlar. After it reaches to the preset twist time, manually lift the torque weight, then the pull force and torque testing is completed. Önceden ayarlanan büküm süresine ulaştıktan sonra, tork ağırlığını manuel olarak kaldırın, ardından çekme kuvveti ve tork testi tamamlanır.
2. İşaret ve kordon ankrajı arasındaki mesafeyi ölçün, mesafe 20mm çıkarılması testten sonra çekme uzunluğudur.
3. Bir sonraki testi işlerken, testi başlatmadan önce “RESET” düğmesine basmanız gerekir, aksi takdirde test cihazı çalışmaz.
