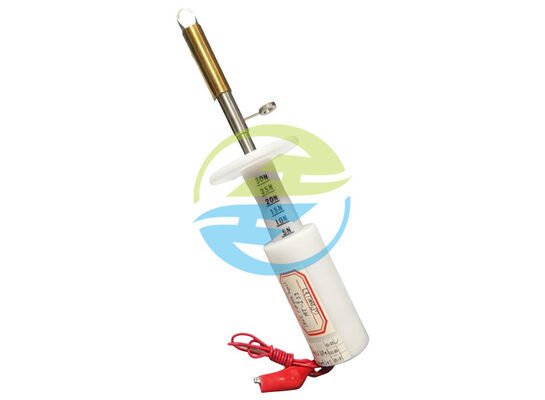

HT-I22 Model Test Finger Probe for Household Appliance and Electrical Safety Testing with IEC/UL Standards

Name: HT-I22 Model Test Finger Probe for Household Appliance and Electrical Safety Testing with IEC/UL Standards
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HT-I22
Price: 5,000.00 USD
Availability: InStock

Marka Adı:	HongCe
Model Numarası:	HT-I22
Moq:	1 takım
fiyat:	Anlaşılabilir
Ödeme Şartları:	T/T
Tedarik Yeteneği:	Ayda 20 takım

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

Calibration certificate(cost additional)

Modeli:

HT-I22

Prob uzunluğu:

80mm

Baskı uygulayın:

10N, 20N, 30N

Oluşturmak:

Parmak ucu, orta parmak, parmak tabanı

Çap:

φ12

Uluslararası standartlara referans:

IEC 60335-1

Ambalaj bilgileri:

Alüminyum kutusu

Vurgulamak:

HT-I22 Model Test Finger Probe

Household Appliance Testing Probe

Electrical Safety Testing Finger Probe

Ürün Açıklaması

Electric Shock Protection Test Finger Nail Probe for Safety Compliance Testing

IEC/UL Standard Test Finger Probe for Electrical Appliance Accessibility Verification

When it comes to electrical safety, even the smallest detail matters. The shape of a probe, the curve of a fingertip, the applied force—each plays a role in determining whether a product truly protects users from accidental contact.

The HT-I22 Electric Shock Protection Test Finger Nail Probe is crafted to simulate a human finger nail under specific test conditions. It is commonly used in conjunction with standardized test fingers to verify accessibility to live or hazardous parts within household appliances, consumer electronics, power tools, IT equipment, and lighting devices.

International Standards Compliance

IEC 61032 – Protection of Persons and Equipment by Enclosures
- Test Probe 11, 12, 13 Requirements
- Clause 6 – Accessibility of live parts
- Annex A – Test probe specifications
IEC 60335-1 – Household and Similar Electrical Appliances
- Clause 8.1 – Access to live parts
- Clause 22 – Construction requirements regarding user contact
IEC 60950 / IEC 62368 – IT & Audio-Video Equipment Safety
- Clause 4.1 – Accessibility test
- Annex B – Articulated test finger and accessories
UL 507 / UL 982 / UL 1310 – Nail accessibility testing requirements
EN 60529 – IP Code Protection – Verification of accessibility to live parts during IP tests

Product Applications

Electrical safety laboratories
Household appliance manufacturers
Mobile phone and consumer electronics factories
Power tool manufacturers
Luminaire and lighting equipment testing

Operating Procedure

Install the test probe securely in the fixture or handle.
Position the electrical product according to the required test angle.
Insert the test finger nail probe into any possible opening or gap.
Apply the specified test force as defined in the relevant standard.
Observe and record results—check whether hazardous parts are accessible.
Repeat tests on all required test points based on the product structure.
Evaluate compliance with applicable safety standards.

Product Specifications

Model	HT-I22
Probe length	80mm
Nail length	37°
Trial finger diameter	Φ12
Apply pressure value	10N,20N,30N
Reference standard	GB4706.1-2005 Figure 7, IEC60335-1 Figure 7
