Stainless Steel IEC60884-1 Standard Plug Socket Tester for Finger Access Protection and Electrical Safety Testing

Stainless Steel IEC60884-1 Standard Plug Socket Tester for Finger Access Protection and Electrical Safety Testing

Marka Adı: HongCe
Model Numarası: HT-I07
Moq: 1 TAKIM
fiyat: Anlaşılabilir
Ödeme Şartları: T/T,L/C
Tedarik Yeteneği: Ayda 50 Set
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Sertifika:
Calibration certificate(cost additional)
Prob çapı:
12 mm
Bölme çapı:
50 mm
Bölme kalınlığı:
5 mm
Prob uzunluğu:
80
Prob Malzemesi:
Paslanmaz çelik
Garanti:
1 Yıl
Renk:
Siyah
Standart:
IEC60884-1
Ambalaj bilgileri:
Alüminyum kutusu
Vurgulamak:

Stainless Steel Plug Socket Tester

,

IEC60884-1 Standard Electrical Safety Test Probe

,

Finger Access Protection IEC Test Fixture

Ürün Açıklaması
IEC Standard Plug Socket Tester for Finger Access Protection
This electrical safety test probe is designed for plug and socket compliance testing, serving as a human contact simulation tool strictly defined by international standards. During testing, this indicator assesses whether plugs, sockets, and similar electrical accessories pose a risk of access to live parts under normal use or foreseeable misuse.
Product Applications
  • Electric shock protection testing for plugs and sockets
  • Structural safety assessment of electrical accessories
  • Safety verification during the new product design phase
International Reference Standards
  • IEC 60529 Clause 12: Protection against access to hazardous parts
  • IEC 60884-1 Clause 10.1: Protection against electric shock
  • IEC 60335-1 Clause 8: Protection against access to live parts
  • IEC 60950/IEC 62368 Accessibility of hazardous voltages
  • IEC 61032 Test probe B / Test probe 11 dimensional requirements
Technical Specifications
Parameters / Model HT-I07
Name Rigid Finger Probe
1 20 -0.05
2 80±0.2
3 R2±0.05
4 S4±0.05
5 37° -10'
6 14° -10'
7 Ф12 -0.05
8 Ф50
9 5±0.5
10 ----
Frequently Asked Questions
Q1: Can this test fixture be used by third-party testing organizations?
Yes, its dimensions and structure strictly comply with IEC requirements, making it suitable for laboratory use.
Q2: Can you provide calibration or testing reports?
Factory inspection instructions are available, and third-party calibration is supported.
Q3: Do you support customized sizes?
Yes, customization is available according to customer testing standards.
Q4: Can it be used with other plug-in socket testers?
Yes, it is commonly used in complete IEC test fixture systems.
Q5: What is the lead time?
Sufficient stock ensures fast delivery!
Product Images

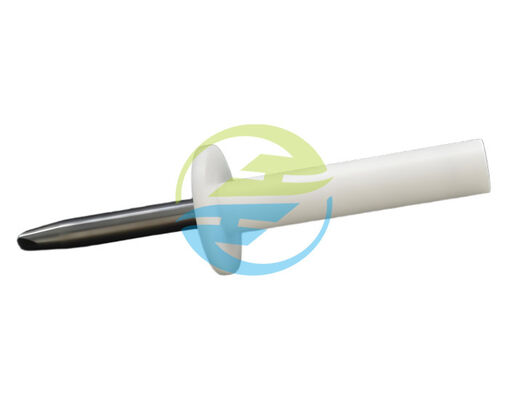

Stainless Steel IEC60884-1 Standard Plug Socket Tester for Finger Access Protection and Electrical Safety Testing 0
IEC Standard Plug Socket Tester
Product Specification Diagram

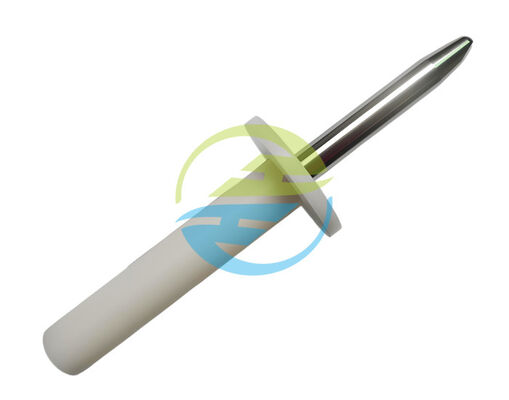

Stainless Steel IEC60884-1 Standard Plug Socket Tester for Finger Access Protection and Electrical Safety Testing 1
Technical Specification Diagram
