Luminaire Inclined Plane Stability Test Apparatus | IEC 60335 Mechanical Stability Testing Equipment for Lighting Products

Marka Adı:	HongCe
Model Numarası:	IPD
Moq:	1 takım
fiyat:	Negotiatable
Ödeme Şartları:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Tedarik Yeteneği:	Ayda 10 takım

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Açı Ölçer:

Janpan'dan ithal edildi

Malzeme:

Çelik

Standart:

IEC60335-1 madde 20.1

Platform Boyutu:

600*600mm~1200*1200mm(Özelleştirilebilir)

Ambalaj bilgileri:

Kontrplak

Vurgulamak:

IEC 60335 stability test apparatus

lighting product mechanical tester

inclined plane stability equipment

Ürün Açıklaması

Luminaire Inclined Plane Stability Test Apparatus

IEC 60335 Mechanical Stability Testing Equipment for Lighting Products

Stability is not just about passing a test—it is about protecting users in everyday life. The Luminaire Inclined Plane Stability Test Apparatus assesses whether luminaires and similar appliances remain stable when placed on inclined surfaces. This test directly addresses potential hazards caused by tipping, sliding, or overturning during normal use.

Built with precision mechanics and practical operation in mind, this tester allows engineers to reproduce standardized inclination conditions with confidence and consistency. It is a trusted solution for laboratories, manufacturers, and certification bodies seeking reliable compliance with international safety standards.

International Reference Standards

IEC 60335-1
Clause 20 – Stability and Mechanical Hazards
Clause 20.1 – Appliances shall be stable in normal use
IEC 60598-1 – Luminaires general requirements and tests
EN 60335-1
GB 4706.1

Applications

Luminaire and lighting fixture manufacturing
Household and commercial lighting safety testing
Quality control departments
Third-party testing and certification laboratories
R&D centers for new lighting product development

Technical Specifications

Model	Plane Diameter	Plane Material	Angle Range	Bearing Capacity	Rotating Mode	Rotating Speed
IPD-1	600mm	High quality coating steel plate	0-30°	50kg	By manual/power-driven	-/1r/min
IPD-2	800mm	High quality coating steel plate	0-30°	80kg	By manual/power-driven	-/1r/min
IPD-3	1000mm	High quality coating steel plate	0-30°	120kg	By manual/power-driven	-/1r/min
IPD-4	800×800mm	Anti-skid board	0-15°	80kg	By manual	-

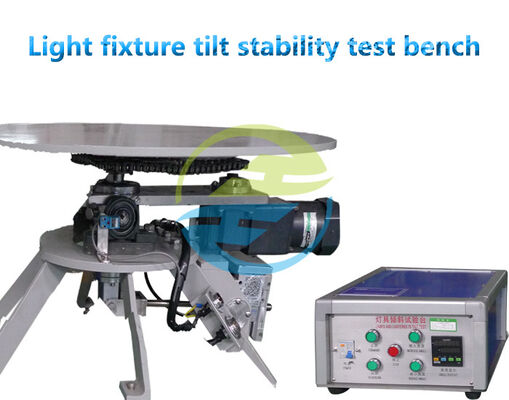

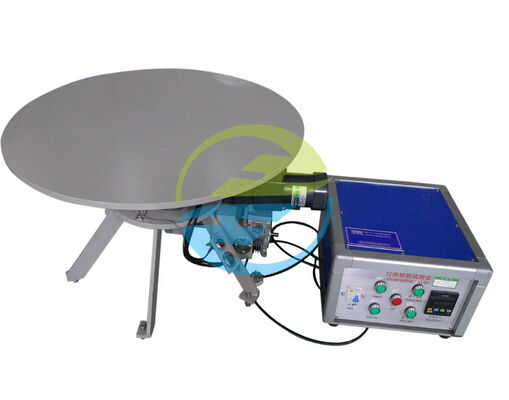

Product Image

Test Objects

Table lamps
Floor lamps
Desk lamps
Decorative luminaires
Portable lighting products
Household electrical appliances requiring stability verification

Why Stability Testing Matters

Unstable luminaires pose a hidden risk in daily use. A simple tilt can lead to serious injury or property damage. This test helps manufacturers identify potential hazards early, reduce recalls, and demonstrate compliance to global markets.

Frequently Asked Questions

Is this tester suitable for different luminaire sizes?

Yes. The large platform accommodates various luminaire dimensions and weights.

Can the inclination angle be customized?

Yes. The angle range and adjustment method can be customized upon request.

Does the equipment require power supply?

No. The tester operates mechanically and does not require electrical power.

Is this tester compliant with IEC 60335 and IEC 60598?

Yes. It is designed specifically to meet stability-related clauses of both standards.

Can HongCe provide customized surfaces for special tests?

Yes. Different surface materials can be supplied to simulate real installation conditions.
