Bulb Drop Impact Test Equipment for Lamp Safety & Mechanical Strength Evaluation | Professional Light Testing Equipment

Name: Bulb Drop Impact Test Equipment for Lamp Safety & Mechanical Strength Evaluation | Professional Light Testing Equipment
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: FL-1000
Price: 5,000.00 USD
Availability: InStock

Marka Adı:	HongCe
Model Numarası:	FL-1000
Moq:	1 Takım
fiyat:	Negotiatable
Ödeme Şartları:	T/T
Tedarik Yeteneği:	Ayda 10 takım

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Yüzey işleme:

Korozyon Önleyici Kaplama

Güç kaynağı:

AC 220V 50Hz

Kurulum:

Tezgah veya zemine monte

Özelleştirme:

Talep üzerine mevcuttur

Ambalaj bilgileri:

Kontrplak

Vurgulamak:

Bulb drop impact tester

Lamp safety testing equipment

Mechanical strength evaluation equipment

Ürün Açıklaması

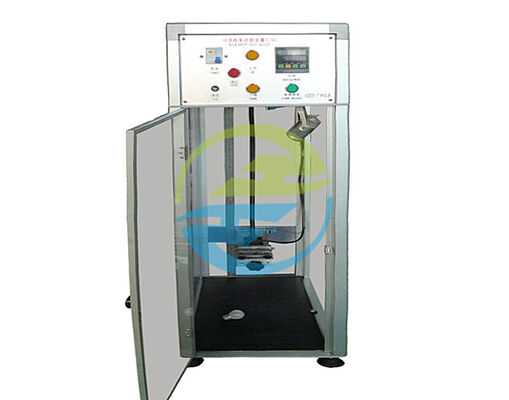

Bulb Drop Impact Test Equipment

Professional testing equipment for lamp safety and mechanical strength evaluation, designed to simulate real-world drop scenarios with precision and reliability.

Product Overview

This specialized equipment accurately simulates light bulb drop impacts to evaluate mechanical durability and safety compliance. The robust steel frame and stable base ensure consistent testing conditions, while the precision clamping system and instantaneous release mechanism guarantee straight vertical drops for reliable, repeatable results.

The rubber impact surface replicates real-world flooring materials, ensuring test results are practical and applicable to actual usage environments.

Key Features

The FL-1000 combines advanced functionality with user-friendly operation:

Digital display and precision ruler for accurate drop height adjustment (330mm to 1000mm)
Transparent safety enclosure with wide viewing area
Integrated interior lighting for clear observation of drop tests
Simple, intuitive operation designed for professional testing environments

Compliance Standards

This equipment meets international testing requirements including:

IEC 60598-1 Luminaires - General requirements and tests (Clause 4.13: Mechanical strength, Clause 4.14: Impact resistance)
IEC 60061 Lamp caps and holders with gauges for interchangeability and safety
IEC 60968/IEC 62560 Self-ballasted lamps for general lighting services
EN 60598-1 European standard for luminaires
GB 7000.1 Chinese national standard for luminaires

Technical Specifications

Feature	Specification
Structure and Control	Motor + screw + data display instrument for lifting control, electromagnet + manipulator for release control
Display Mode	Digital drop height displacement display with high-precision 1mm steel ruler
Rack Construction	Stainless steel column, ball screw, high-quality painted steel base
Working Power Supply	AC 220V 50HZ
Lifting Range	330mm-1000mm, fully adjustable
Specimen Clamping	Universal manual clamping fixture with button-controlled solenoid valve instantaneous release
Impact Surface	Rubber sheet with Shore hardness 88 ± 3, 10mm thickness, mounted on thickened base plate
Interior Lighting	Top-mounted cabinet lights for clear test visibility
Station Configuration	Single station
Safety Enclosure	Transparent acrylic panels with large front door for wide viewing area
Base and Leveling	Thickened steel plate with mounted spirit bubble level, four adjustable feet
Dimensions and Weight	400×600×1200mm, 80kg

Testing Capabilities

Compatible Test Objects

E17 screw-in (small Edison screw) bulbs
E22/E26 screw-in (standard Edison screw) bulbs (E26 typically requires adapter clamp)
Other small lighting products with similar shape and weight (custom clamps available)

Critical Detection Items

Carrier Integrity: Post-test inspection for cracks or leaks in glass housing
Lamp Base Strength: Assessment of deformation, loosening, or detachment from glass
Internal Structural Damage: Indirect determination of filament, LED module, or driver power supply damage through subsequent electrical testing
Safety Risk Verification: Confirmation that drops do not expose live parts creating electric shock hazards

Equipment Visualization

Frequently Asked Questions

Can this machine test LED bulbs with different shapes?

Yes. The adjustable lamp holders support most common LED bulb shapes. Custom fixtures are also available for specialized requirements.

Does the equipment require power?

No. The drop impact test is fully mechanical and does not require electrical power for the testing operation.

Can the drop height be customized beyond 1000 mm?

Yes. HongCe supports custom height ranges based on specific test standards or unique customer requirements.

Is the tester suitable for certification labs?

Absolutely. The equipment design follows IEC and EN test clauses commonly required by certification bodies and testing laboratories.

Can you provide calibration or test guidance?

Yes. Our engineering team provides comprehensive setup guidance and testing recommendations according to applicable international standards.
